Products
>
Supply Kits
>
Integral Check Valve
>

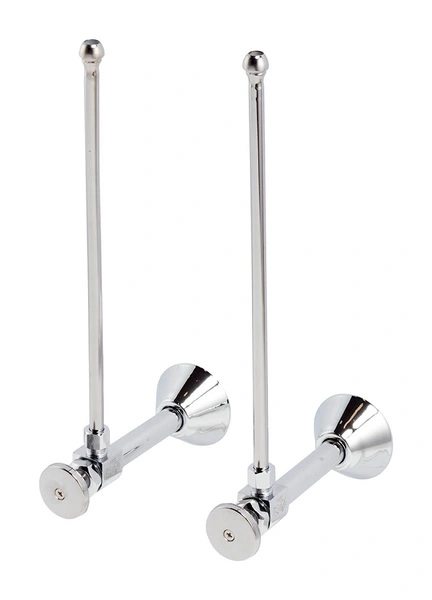

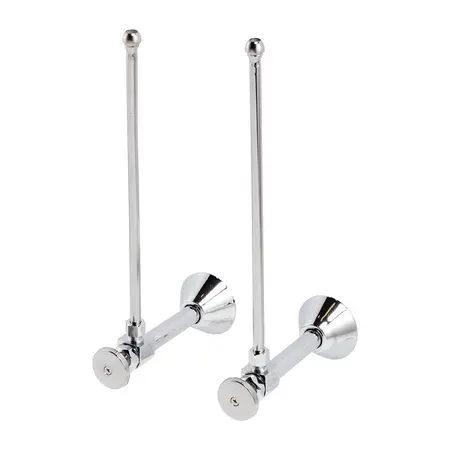

LFCK170: 1/2 Sweat w/ 5 IN ext x 3/8 AB 1953
LFCK170: 1/2 Sweat w/ 5 IN ext x 3/8 AB 1953
Click to view a larger image
Part Number:
LFCK170
Item Name:
Integral Check Lavatory Supply Kit 1/2 Sweat with 5 Extention x OD, Integral Check Supply Kit 3/8Inch IPS x O.D.
Series:
ICV Defender
Style:
Integral Check Valve
UPC Code:
758062062978
US PATENT #:
11,11,2019
Minimum Order Quantity:
1
Case Qty:
25
Industry Standards/Certifications:
AB100 Compliant: NSF/ANSI/CAN 61: Q < 0.5 µg
Connection Type:
Nom Sweat
Finish:
Chrome
Inlet Size:
1/2
Inlet Type:
Sweat w/ 5Inch Ext
Outlet Size:
3/8
Outlet Type:
OD
Material:
Brass
Flange Type:
Deep Bell
Flange Material:
Steel
Handle Type:
Full-Turn Wheel Handle
Body Material:
Machined brass
Handle Material and Plating:
Chrome Plated Brass
Riser Type:
12 in Copper Flexible Tube
Stem Type:
Brass
Stem Material:
Brass
Stem Washer Material:
EPDM Peroxide Cured
A_in:
1
B_in:
6-1/4
C_in:
5-1/2
Each Depth_in:
12.25
Each Height_in:
1.5
Each Width_in:
2.5
Each Weight_lb:
1.48
Case Depth_in:
17.389
Case Height_in:
5.5
Case Weight_lb:
37
Case Width_in:
14.125
Construction Type:
Sweat x Compression with Extension
Includes:
LFCK082/M65/SE069D
Maximum Temperature:
180 ºF max during temporary high-temperature system flush
Operating Pressure [Max]_psi:
125
Operating Pressure [Min]_psi:
20
Operating Temperature [Max]_ºF:
140
Operating Temperature Min_ºF:
40
Operation Type:
Full turn
Product Name:
Integral Check Supply Kit 3/8Inch IPS x O.D.
Product Page Name:
1/2 Sweat w/ 5 IN ext x 3/8 AB 1953
Short Description:
1/2 x 3/8
Type:
Lavatory
List Price:
$199.18/PR
Out of Stock
