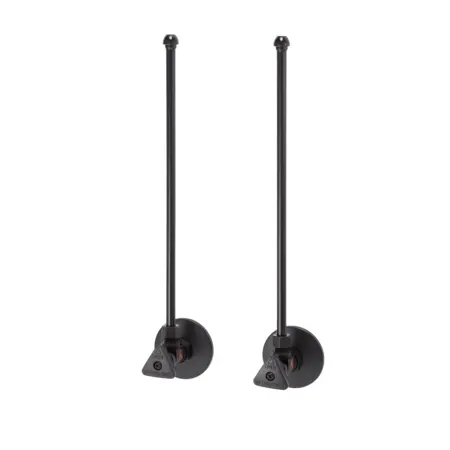

LFBV2-2165CCMB: 1/2 Compression x 3/8

Part Number:: LFBV2-2165CCMB
Item Name:: Special Finish Quarter-Turn Brass Ball Valve Lavatory Supply
Series:: Grandview Special Finish, Convertible™ II
Style:: Convertible Quarter Turn
Minimum Order Quantity:: 1
Case Qty:: 25
Industry Standards/Certifications:: AB100 Compliant: NSF/ANSI/CAN 61: Q < 0.5 µg
Connection Type:: Compression x Compression
Finish:: Powder Coated Matte Black
Inlet Size:: 1/2
Inlet Type:: Nominal
Outlet Size:: 3/8
Outlet Type:: OD
Material:: Brass
Flange Type:: Shallow
Flange Material:: Steel
Handle Type:: Convertible Triangle
Ball Material:: Brass
Ball Seat:: Teflon
Body Material:: Machined brass
Handle Material and Plating:: Powder Coated Matte Black Zinc
Handle Screw Material:: Brass
Riser Type:: 12 in Copper Flexible Tube
Stem Material:: Brass
Riser Length_in:: 12
Length_in:: 2-1/2
Each Depth_in:: 12.25
Each Height_in:: 1.5
Each Width_in:: 2.5
Each Weight_lb:: 1
Case Depth_in:: 17.444
Case Height_in:: 5.5
Case Weight_lb:: 25
Case Width_in:: 14.125
Maximum Temperature:: 80 ºF max during temporary high-temperature system flush
Operating Pressure [Max]_psi:: 125
Operating Pressure [Min]_psi:: 20
Operating Temperature [Max]_ºF:: 140
Operating Temperature Min_ºF:: 40
Operation Type:: Quarter turn
Product Page Name:: 1/2 Compression x 3/8
Short Description:: 1/2 x 3/8
Type:: Lavatory
