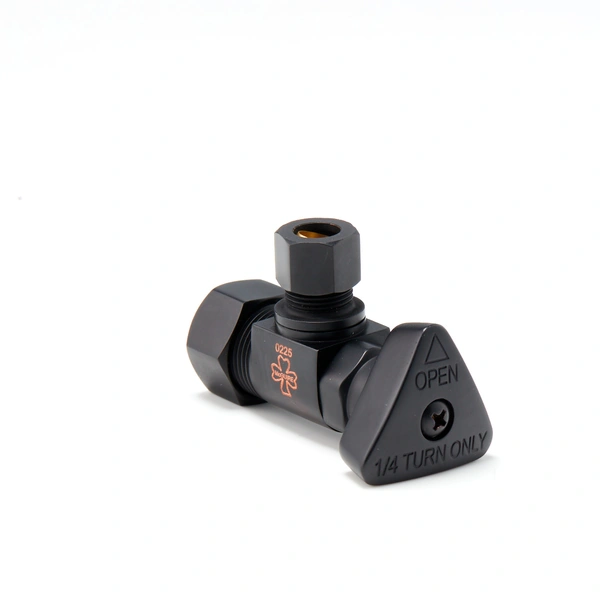

LFBV2-09MB: 1/2 Compression x 3/8

Part Number:: LFBV2-09MB
Item Name:: Quarter-Turn Brass Ball Valve
Series:: Grandview Special Finish, Convertible II
UPC Code:: 758062027434
Minimum Order Quantity:: 1
Case Qty:: 25
Industry Standards/Certifications:: AB100 Compliant: NSF/ANSI/CAN 61: Q < 0.5 µg
Connection Type:: Compression x Compression
Finish:: Matte Black
Inlet Size:: 1/2
Inlet Type:: Compression
Outlet Size:: 3/8
Outlet Type:: OD
Material:: Brass
Handle Type:: Convertible Triangle
Ball Material:: Brass
Ball Seat:: Teflon
Body Material:: Machined brass
Handle Material and Plating:: Powder Coated Matte Black
Handle Screw Material:: Brass
Stem Type:: Brass
Stem Material:: Brass
Stem Washer Material:: EPDM Peroxide Cure
Length_in:: 2-5/8
Each Depth_in:: 9.5
Each Height_in:: 2.313
Each Width_in:: 6
Each Weight_lb:: 0.41
Case Depth_in:: 9.5
Case Height_in:: 2.313
Case Weight_lb:: 10.25
Case Width_in:: 6
Maximum Temperature:: 180 ºF max during temporary high-temperature system flush
Operating Pressure [Max]_psi:: 125
Operating Pressure [Min]_psi:: 20
Operating Temperature [Max]_ºF:: 140
Operating Temperature Min_ºF:: 40
Operation Type:: Quarter turn
Product Name:: Quarter-Turn Brass Ball Valves
Short Description:: 1/2 x 3/8
Type:: Angle
Width-stops_in:: 1.5625
List Price:: $76.56/EA

Quantity:

Overview
Documents

The classic Matte Black finish offers a sleek, velvety appearance. It is an ideal design choice for creating bold contrast in light-colored environments. Classic Matte Black is a powder-coated finish.
