8912CB-ORB: 1-1/2 IN x 1-1/2 IN

Part Number:
8912CB-ORB
Item Name:
Oil Rubbed Bronze, Cast Body P-Trap with Cleanout
Series:
Grandview Special Finish
UPC Code:
758062027298
Minimum Order Quantity:
100
Case Qty:
25
Industry Standards/Certifications:
ASME A112.18.2/CSA B125.2
Connection Type:
Slip nut
Finish:
Oil Rubbed Bronze Plated
Cleanout (Y/N?):
Yes
Gauge (GA):
17
Size:
1-1/2 IN
End Size:
1-1/2 IN
End Size 2:
1-1/4 IN
Material:
Cast brass
Flange Type:
Box
Flange Material:
Wrought Steel
Slip Nut Material:
Heavy cast brass
Wall Bend Material:
17GA brass
Wallbend Length_in:
9
Each Depth_in:
12
Each Height_in:
2
Each Width_in:
5
Each Weight_lb:
2.11
Case Depth_in:
25.375
Case Height_in:
6.375
Case Weight_lb:
15.25
Case Width_in:
14
Application:
Bathroom Sink, Kitchen Sink
Includes:
1-1/4 IN reducing nut
Maximum Temperature:
180 ºF max during temporary high-temperature system flush
Operating Pressure [Max]_psi:
125
Operating Pressure [Min]_psi:
20
Operating Temperature [Max]_ºF:
140
Operating Temperature Min_ºF:
40
Short Description:
1-1/2 IN x 1-1/2 IN
Type:
Adjustable
List Price:
$216.92/EA
Out of Stock
View

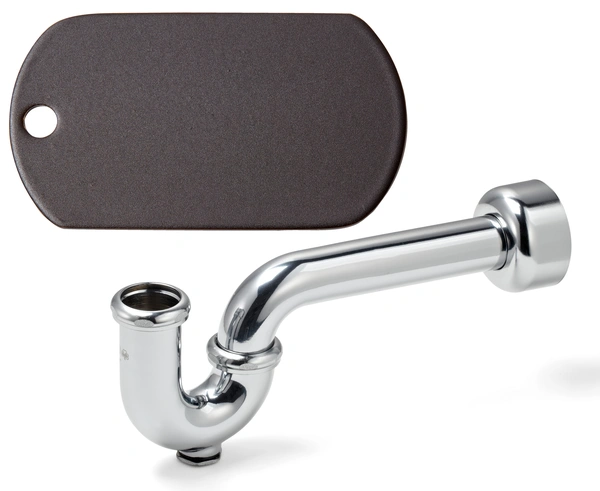

Oil-rubbed bronze, heavy cast brass 1-1/2, 1-1/4 x 1-1/2" adjustable trap with cleanout plug and 11-1/2" center-to-end. Furnished with slip nuts, seamless tubular brass wall bend, and steel box flange.
