8090CBOSPRESS: 1-1/4 IN x 1-1/2 IN with Press Extension

Part Number:
8090CBOSPRESS
Item Name:
Boston Press P-Trap
Minimum Order Quantity:
1
Case Qty:
25
Industry Standards/Certifications:
ASME A112.18.2/CSA B125.2 and Mass Code Approved
Connection Type:
Press
Finish:
Chrome
Cleanout (Y/N?):
Yes
Gauge (GA):
17
Size:
1-1/2 IN
End Size:
1-1/4
Material:
Cast brass
Flange Type:
Deep Bell
Flange Material:
Steel
Slip Nut Material:
Cast brass
A_in:
11-1/2
B_in:
5-5/8
C_in:
4-5/8
C to E_in:
11-1/2
D_in:
4-1/2
E_in:
5
Application:
Bathroom Sink, Kitchen Sink
Maximum Temperature:
180 ºF max during high-temperature system flush, 180 ºF max during temporary high-temperature system flush
Operating Pressure [Max]_psi:
125
Operating Pressure [Min]_psi:
20
Operating Temperature [Max]_ºF:
140
Operating Temperature Min_ºF:
40
Short Description:
1-1/4 IN x 1-1/2 IN with 6 IN Press Extension
Type:
Tubular Press Extension Traps
List Price:
$122.43
Out of Stock
View

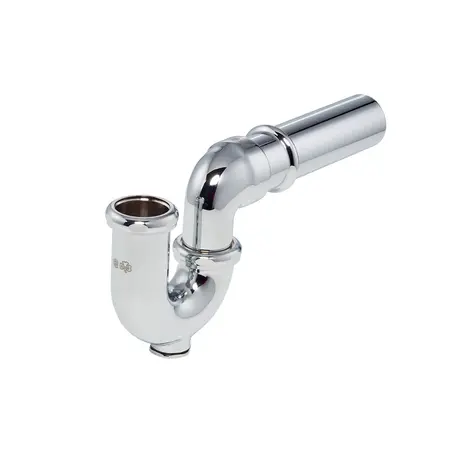

1-1/4 x 1-1/2 with McGuire's press extension and 10 inch center to end. Heavy cast brass adjustable trap with cleanout plug. Furnished with cast brass slip nuts, ground joint elbow, heavy 17 gauge brass tubular press extension and chrome plated steel bell flange.

Quick Installation  |  Time-Saving Labor  |  Flame-Free Plumbing
